FBSA207/DB軸承
鼎力晟業是SKF進口軸承代理商，不僅為工業配套用戶提供SKF FBSA207/DB軸承，在維修市場也提供足夠的支持，是SKF軸承在國內的優質經銷商之一，購買SKF FBSA207/DB軸承，鼎力晟業是您放心的選擇。
型號：FBSA207/DB
品牌：SKF
內徑：35
外徑：90
厚度：52
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA207/DB軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

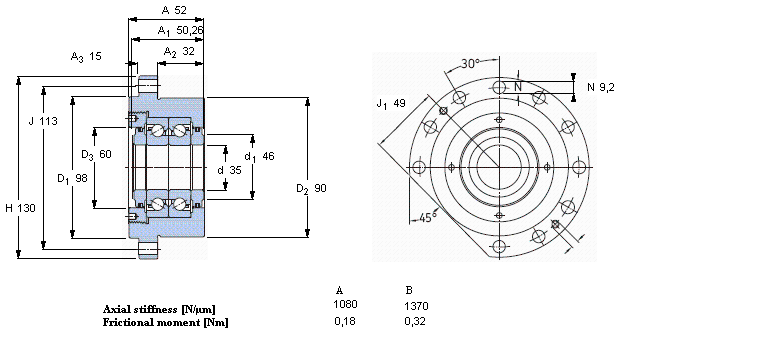

SKF FBSA207/DB尺寸圖紙
FBSA207/DB軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 90 | 52 | 36,5 | 98 | 3,65 | 5600 | 2800 | 3,2 | FBSA 207/ DB | BSDU 235 DD | |
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- FBSA204/DB軸承
- 20
- 60
- 47
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/DF軸承
- 20
- 60
- 47
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QBC軸承
- 20
- 60
- 77
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QFC軸承
- 20
- 60
- 77
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DB軸承
- 25
- 80
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DF軸承
- 25
- 80
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/QBC軸承
- 25
- 80
- 82
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/QFC軸承
- 25
- 80
- 82
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
相同內徑*外徑*厚度—35*90*52
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- FBSA207/DB軸承
- 35
- 90
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA207/DF軸承
- 35
- 90
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
