BEAM020068-2Z/PE軸承
我們不僅提供SKF BEAM020068-2Z/PE軸承，還提供SKF品牌的其他品牌產品，以及SKF BEAM020068-2Z/PE軸承的替換型號，萬千種型號，任您選擇。
型號：BEAM020068-2Z/PE
品牌：SKF
內徑：20
外徑：68
厚度：28
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM020068-2Z/PE軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

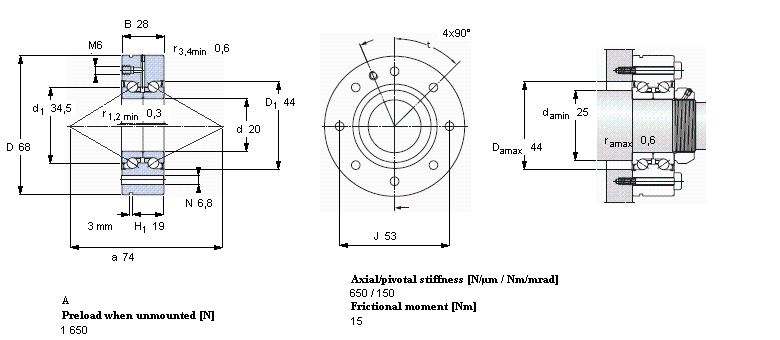

SKF BEAM020068-2Z/PE尺寸圖紙
BEAM020068-2Z/PE軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 6000 | 0,61 | BEAM 020068-2Z/PE | BEAM 20/68/Z SQP60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
