S71909CD/HCP4A軸承
SKFSKF進口軸承經銷 磐固晟為用戶提供高品質的S71909CD/HCP4A軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF S71909CD/HCP4A軸承，確保您的不間斷生產。
型號：S71909CD/HCP4A
品牌：SKF
內徑：45
外徑：68
厚度：12
系列：角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid
【更新日期：2016/8/3 電腦版 S71909CD/HCP4A軸承】

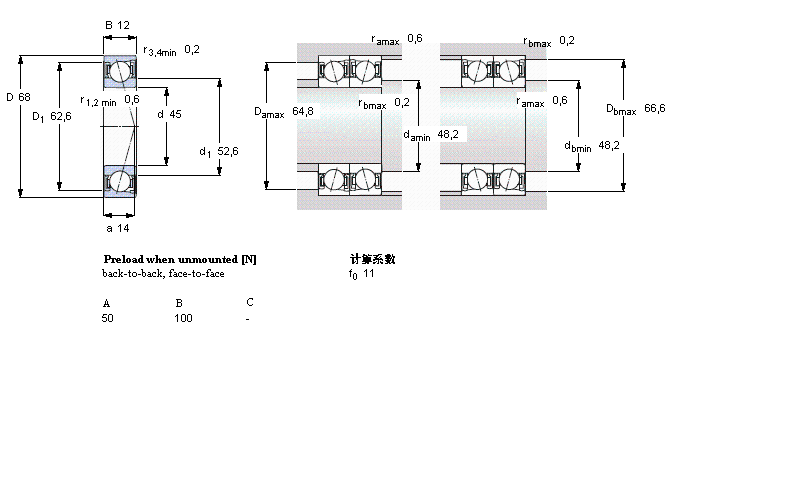

S71909CD/HCP4A軸承
| 角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 68 | 12 | 13 | 9,5 | 0,4 | 24000 | - | 0,11 | S71909 CD/HCP4A | - | |
