S71918DB/P7軸承
SKF磐固晟是SKF進口軸承經銷 ，銷售SKF S71918DB/P7軸承，不僅具備價格優勢，而且在供貨及時性、供貨能力方面具有比較優勢，能在最短的時間內為用戶提供原裝進口的SKF S71918DB/P7軸承。
型號：S71918DB/P7
品牌：SKF
內徑：90
外徑：125
厚度：18
系列：角接觸球軸承, 精密, S .. DB, sealed, contact angle 25°
【更新日期：2016/8/3 電腦版 S71918DB/P7軸承】

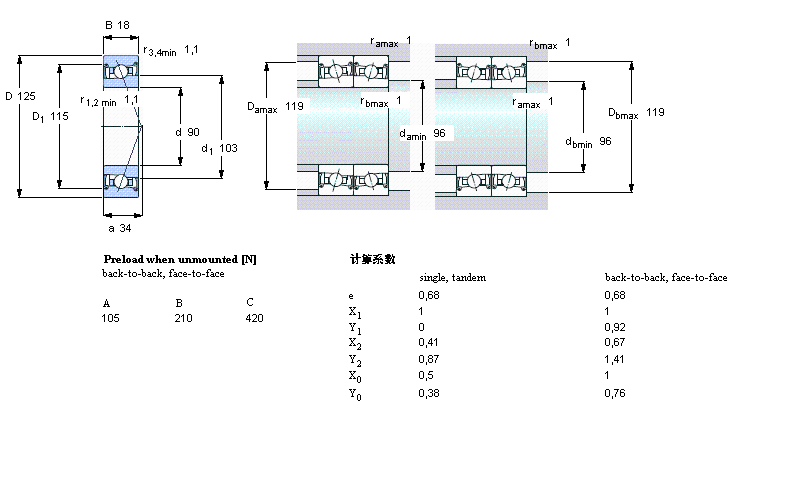

S71918DB/P7軸承
| 角接觸球軸承, 精密, S .. DB, sealed, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 90 | 125 | 18 | 22,5 | 29 | 1,18 | 11000 | - | 0,57 | S71918 DB/P7 | - | |
