BEAM020068-2Z軸承
SKFSKF進口軸承經銷 磐固晟為用戶提供高品質的BEAM020068-2Z軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF BEAM020068-2Z軸承，確保您的不間斷生產。
型號：BEAM020068-2Z
品牌：SKF
內徑：20
外徑：68
厚度：28
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【更新日期：2016/8/3 電腦版 BEAM020068-2Z軸承】

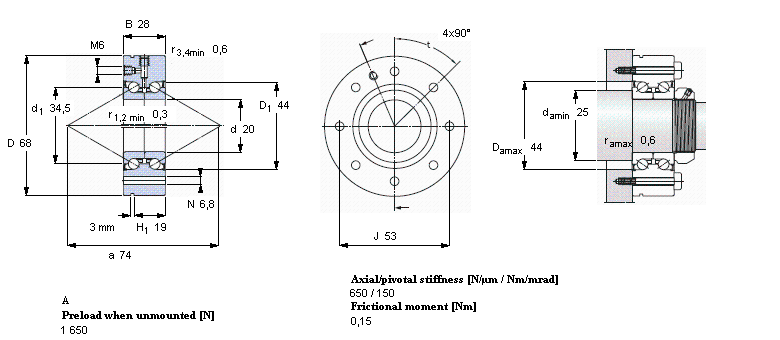

BEAM020068-2Z軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 6000 | 0,61 | BEAM 020068-2Z | BEAM 20/68/Z 7P60 | |
