71911ACE/HCP4A軸承
SKFSKF 71911ACE/HCP4A軸承工業配套用戶請注意：批量采購SKF 71911ACE/HCP4A軸承，請至少提前一周與我們聯系，長期批量采購請?zhí)峁┠甓炔少徲?jì)劃，我們將十分感謝您的預見性，我們將提供極為優惠的價格以保障您的權益。
型號：71911ACE/HCP4A
品牌：SKF
內徑：55
外徑：80
厚度：13
系列：角接觸球軸承, 精密, ACE/HC, contact angle 25°, hybrid
【更新日期：2016/8/3 電腦版 71911ACE/HCP4A軸承】

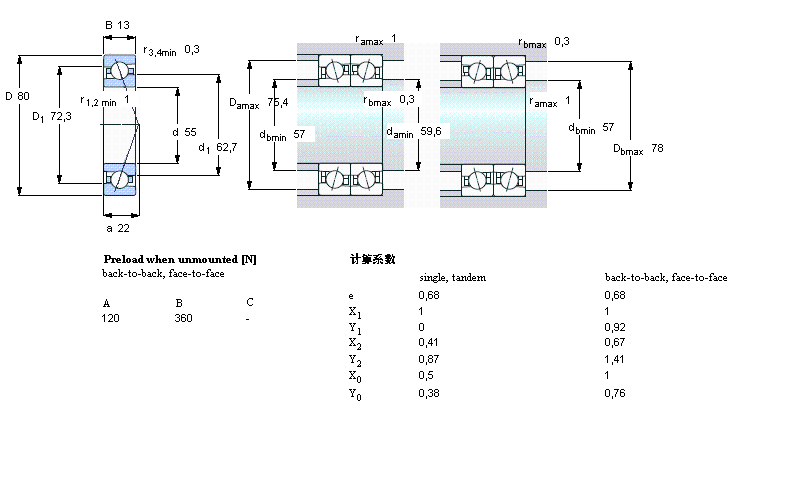

71911ACE/HCP4A軸承
| 角接觸球軸承, 精密, ACE/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 55 | 80 | 13 | 14,6 | 9,5 | 0,4 | 24000 | 36000 | 0,15 | 71911 ACE/HCP4A | - | |
