71813CD/HCP4A軸承
SKF訂購SKF 71813CD/HCP4A軸承，請隨時與我們聯系，我們將根據匯率的波動為您提供實時準確的價格，確保以最優惠的價格為您提供優質的SKF 71813CD/HCP4A軸承。
型號：71813CD/HCP4A
品牌：SKF
內徑：65
外徑：85
厚度：10
系列：角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision
【更新日期：2016/8/3 電腦版 71813CD/HCP4A軸承】

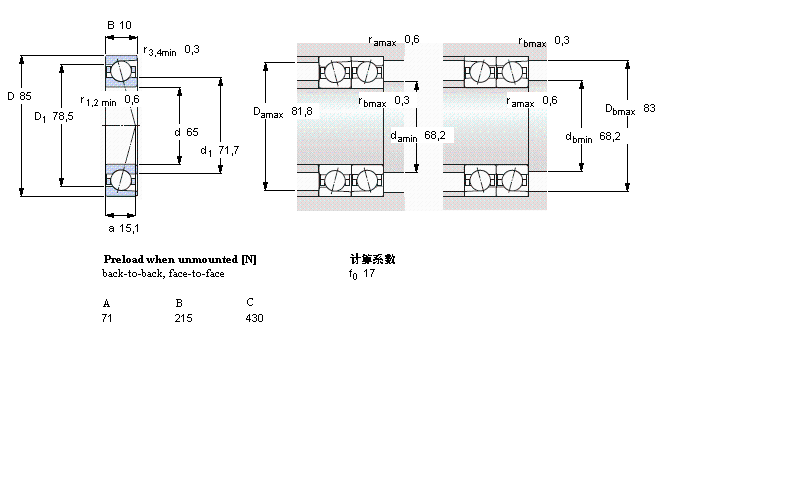

71813CD/HCP4A軸承
| 角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 65 | 85 | 10 | 13,5 | 14,6 | 0,63 | 18000 | 28000 | 0,114 | 71813 CD/HCP4A | SEA65 /NS 7CE1 | |
